CNC tube bending machines use servo and hydraulic drives for precise control of bending angles and tube positioning, offering efficient, high-performance operations. It supports both core and non-core bending and is widely used in industries such as shipbuilding, boilers, chemicals, and automotive manufacturing.

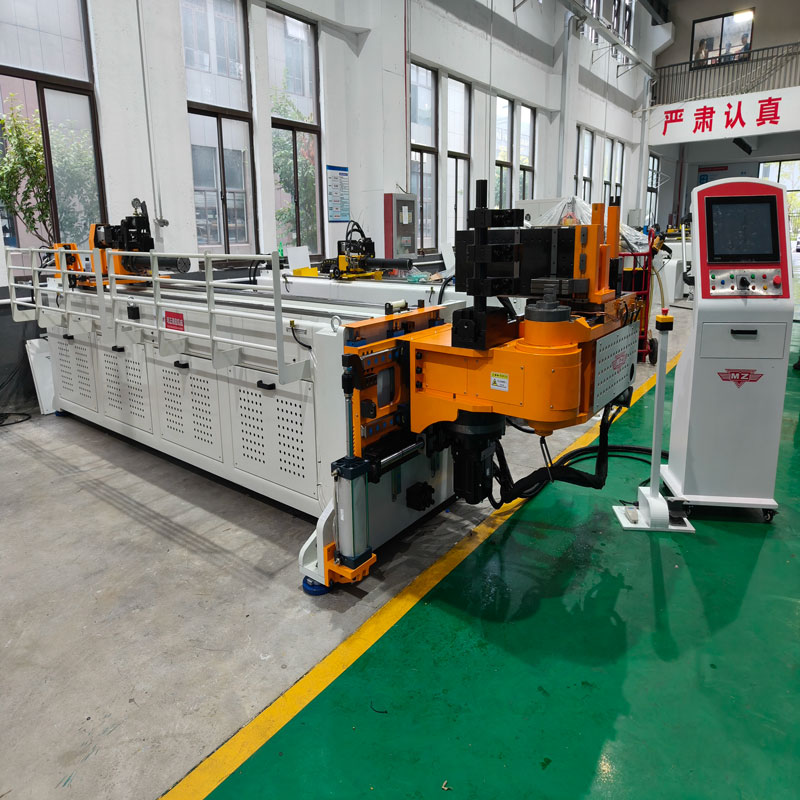

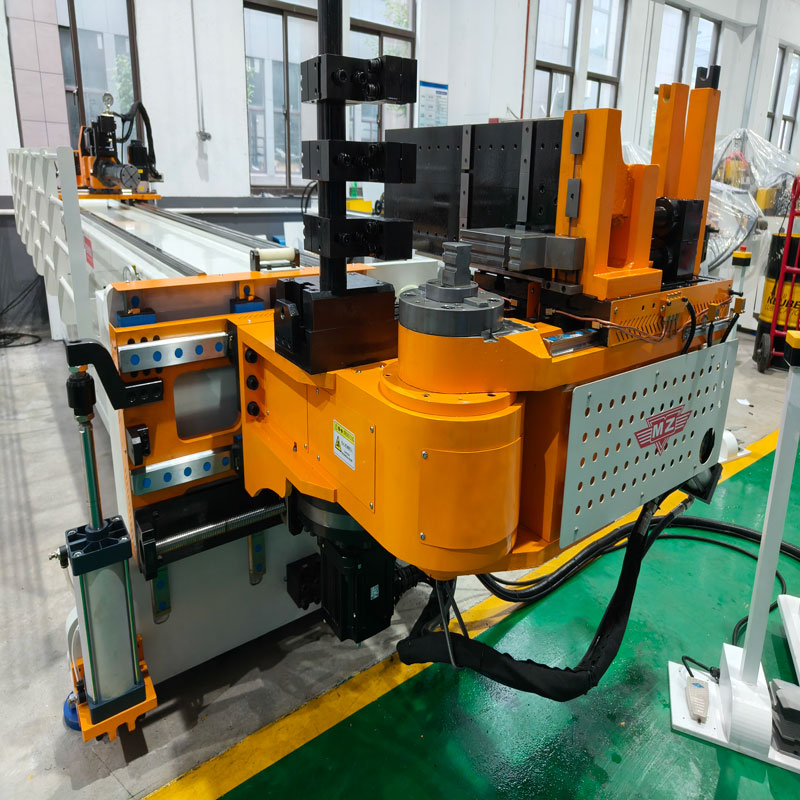

CNC Tube Bending Machines

● CNC Control: Precise control of bending angles, feeding length, and tube rotation.

● Servo and Hydraulic Drive: Efficient power system for high-performance bending.

● Multi-functional: Supports both with and without core bending for various materials.

● User-friendly: Easy operation with manual, semi-automatic, and automatic modes.

● Wide Application: Ideal for industries like shipbuilding, boilers, chemicals, and automotive manufacturing.

CNC tube bending machines with PLC or IPC which manage Feeding (Y), Rotate (B) & Bending (C) in a complete automatic cycle.

Feeding (Y-Axis): Controlled by Servo motor.

● Fully hydraulic movement on clamp die, pressure die, and mandrel.

● Available pipe material: steel, stainless, aluminum, titanium, and brass...

● Available pipe shapes: Round, Square, Rectangle, Oval, Solid Bar, and other profiles.

● Equipped with Japan Omron encoder, which ensures the accuracy and stability of bending.

We only use world-famous, popular-quality components in the production of our cnc tube bending machines: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

Ensure efficient and precise operation during the bending process to meet various processing needs.

Specification

NO.	Name		Unit	Parameters	Mark
1	Max Processing Pipe Size		mm	Φ63×2.5t	Carbon steel
2	Bending radius		mm	180	Can be customized
3	Max feeding length		mm	3000	Can be customized
4	Maximum radius difference		mm	80	Can be customized
5	Feeding method			1. Direct feeding 2. Clamping feeding	optional
6	Max bending angle		Degree	190
7	Using controller			IPC
8	Number of bends per fitting		个	30
9	Working speed	bending	Deg/sec	100	adjustable
		rotating	Deg/sec	200	adjustable
		feeding	Mm/sec	800	adjustable
10	accuracy	feeding	mm	±0.1
		rotating	Degree	±0.1
		bending	Degree	±0.1
11	Rotating servo motor		W	750	Mitsubishi
12	Feeding servo motor		Kw	1.5	Mitsubishi
13	Bending servo motor		Kw	11	Mitsubishi
14	Up and down mold changing servo motor power		Kw	3	Mitsubishi
15	Power of servo motor for mold replacement		Kw	1	Mitsubishi
16	Data input mode			1、Coordinate value（X、Y、Z） 2、Working value（Y、B、C）	optional
17	Hydraulic motor horsepower		Kw	5.5
18	Maximum pressure		MPa	14	adjustable
19	Hydraulic system control			solenoid directional valve
20	Fuel tank capacity		L	150
21	Machine weight		Kg	约4000
22	Machine size		cm	491×130×160
